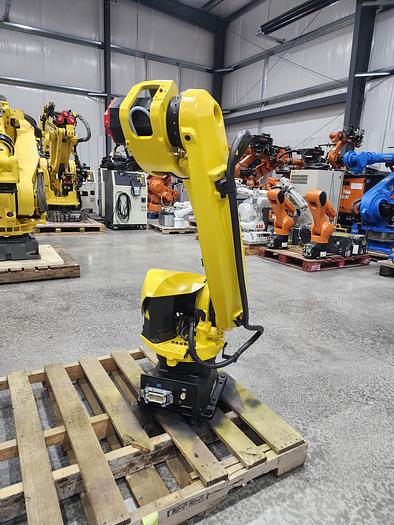

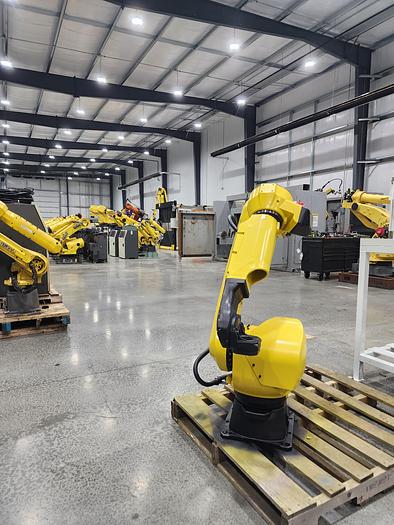

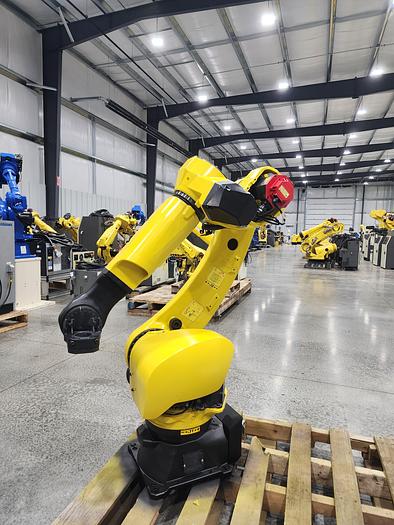

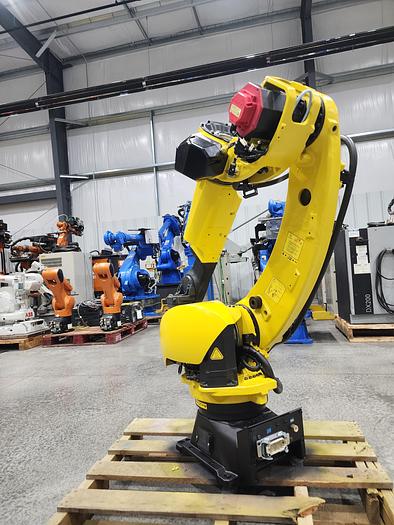

Fanuc Arcmate 120id Industrial Welding Robot With R-30ib Plus Controller

The Fanuc ArcMate 120id is an industrial welding robot designed for precision and efficiency in demanding welding applications. This refurbished model is paired with the advanced R-30iB Plus controller and comes with a robust array of software options. It boasts a maximum payload of 25 kg and an extended reach of 1831 mm, making it versatile for different welding tasks. The system's precision is ensured with a repeatability of ±0.02 mm. Powered by a 480V three-phase supply, it is well-suited for industrial environments. Tested and fully functional, this robotic system from the 2021 lineup features essential tools like ArcTool software and advanced control options, enhancing its operational capabilities. Additionally, the system weighs 250 kg, while the controller supports multiple connectivity and process monitoring features. The ArcMate 120id exemplifies Fanuc's commitment to high-quality manufacturing solutions, offering reliable performance for extensive use. Shipping arrangements avoid common carrier LTL, preferring methods that ensure safety, such as flatbed and dedicated trucks. Free loading is available to streamline logistics. For those needing a comprehensive software package, a Fanuc software license with 24/7 tech support is available at an additional cost. Contact for specific software needs or shipping queries to ensure the best configuration and delivery for your operations.

FANUC ArcMate 120id Industrial Welding Robot With R-30ib Plus Controller

Complete Robotic System!

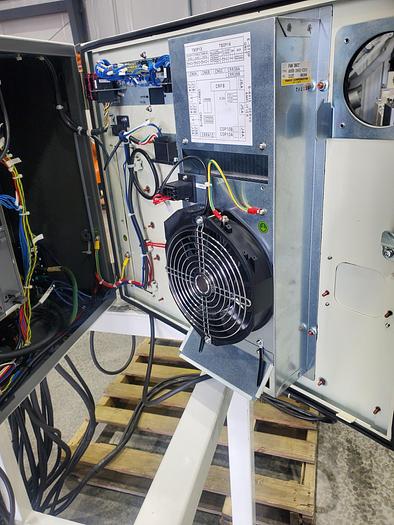

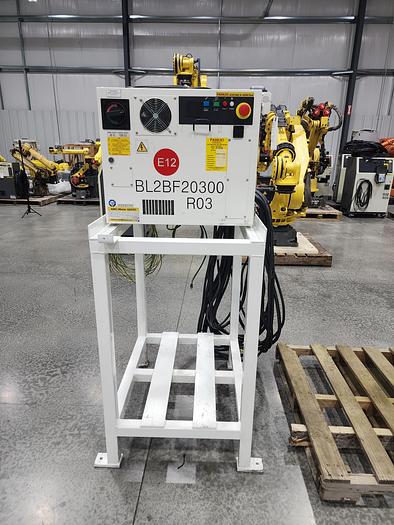

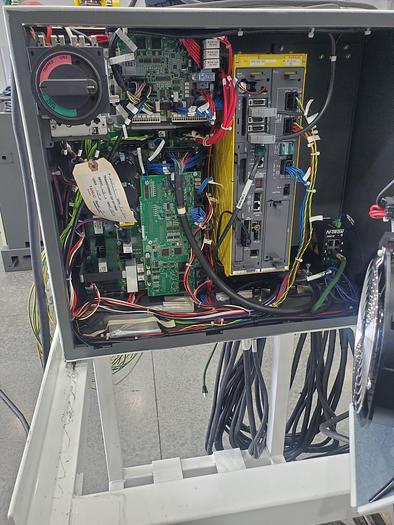

R-30iB Plus Controller

Year: 2021

Product Condition:

TESTED & Fully Functional - Excellent condition: These systems are fully functioning and tested.

Specifications:

Maximum Payload: 25 KG

Maximum Reach: 1831 MM

Software: ArcTool

Software Options:

• H541 ArcTool
• H521 English Dictionary
• R764 4D Graphics
• R806 ADV-CP Path Ctrl
• R805 ADV-CP Speed Ctrl
• R859 Advanced DCS Package
• R887 Advanced EIP SCN Pkg
• R665 Alarm Cause/Remedy
• R796 Ascii Program Loader
• R861 Auto Backward Exit
• J924 Auto Error Recovery
• R761 Basic Interference Ck
• R534 Collision Guard
• J684 Collision Guard Pack
• R663 Constant Path
• J567 DCS Pos./Speed Check
• J568 DCS Safe I/O Connect
• J775 Domain Name Serv.
• R825 Enh Vision Port
• J527 Error Code Output
• R713 EtherNet/IP Safety
• R659 Ethernet Sniffer
• R784 Ethernet/IP Adapter
• R822 Ethernet/IP EDA
• R785 Ethernet/IP Scanner
• J518 Extended Axis Control
• J569 External mode select
• R650 FRA Params
• R653 Fronius Weld Eq Lib
• R553 HMI Device (SNPX)
• J760 Integrated PMC
• R558 Internet Conn/Custo
• R632 KAREL
• J771 Maintenance Reminder
• R577 Menu Utility
• R583 Motion Interface
• J601 Multi-Group Motion
• J547 NRTL
• R664 Online Help
• J695 Operation logbook
• R641 PC Interface
• R652 PMC Change Mode
• R812 PMC and Internet Pkg
• R594 Panel Wizard
• J541 Password Protection
• J669 Payload Ident.
• J878 Payload confirm
• R758 Process Logger
• R843 Remote iPendant
• R866 SkipJump Instruction
• J612 Soft Float
• J521 Stop Cat.1 by E-Stop
• R638 TCP Mate
• J694 TCP SPEED OUTPUT
• R734 Torch Angle
• J681 TorchGuard
• R639 TorchMate
• R648 User Socket Msg
• R765 iRDiagnostics
• H656 ARC Mate 120iD
• R830 Expanded Registers
• R802 Cycle Time Logging
• R545 Filtered Memory Dev.

Fanuc software license is available with 24/7 tech support at an additional cost. Contact us with Software and option requirements for a quote!

Shipping 255 KG (562 lbs.)

Voltage: 480v 3 phase

Shipping:

Contact us with any shipping questions you may have.

Robotic systems will be shipped via Flatbed Conestoga, Sprinter Van, dedicated box truck.

!!!!SIX AXIS SILUTIONS WILL NOT SHIP ANY ROBOTIC SYSTEM VIA COMMON CARRIER LTL!!!!!  Based on experience robots do not arrive safely being palletized and shipped LTL common carrier shipping.

Contact us for a shipping quote

We load for free.

Fanuc software license is available with 24/7 tech support. Contact us with Software and option requirements for a quote!

Six Axis Solutions specializes in industrial robotic systems, robot cells and replacement parts. Please contact us with any questions or concerns you may have as your satisfaction is our highest priority.
